USB 2.0 External DVI Video Card
GUC2020DW6
Description
The IOGEAR USB 2.0 External DVI Video Card instantly adds an additional high resolution DVI display through your USB 2.0 port. Simply install the driver, plug the adapter into the USB 2.0 port and you're ready to go.
Extend your desktop across both displays allowing you to increase your productivity like never before. While reading email on one display, open attachments on the other display. Expand spreadsheets across both monitors; in graphics programs you can increase your working area by putting all your pallets on the second display.
IOGEAR's USB-DVI adapter is powered through the USB cable so no additional power supply is needed. By using USB there is no need to open the computer. Adding a second internal video card to a desktop can be complicated and impossible in some cases. With the IOGEAR DVI display adapter, just plug it in.
Feature
- Add up to six* external DVI video cards via USB 2.0 ports
- Support resolution of UXGA 1600x1200 and 32-bit color
- No need to open cases. Great for laptops or leasing computers
*Requires six USB 2.0 ports. Not recommended to connect with USB hubs.
The possibilities with the IOGEAR DVI display adapter are endless.
Office Use:
- View large spreadsheets across two screens with display continuity
- Multitask more effectively without overlapping windows
- Open attachments on one screen while reading the e-mail on the other
Graphic Use:
- Use second display for pallets & tools
Data Entry Use:
- Type documents on one screen while viewing reference material on the other
Wall Street:
- Use a notebook for viewing multiple screens
- View charts and live data at the same time
Warranty: 3-YEAR

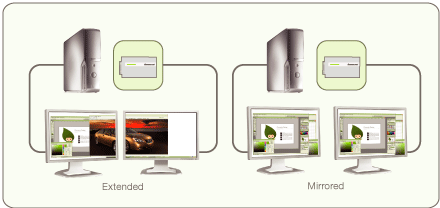

Function Diagram
Requirements
- Computers with USB ports
- Laptop computer
- Windows 2000 or higher, XP, Vista
Package Content
- 1 - USB to DVI Adapter
1 - Quick Start Guide
1 - CD-ROM with User Guide and Installation Software
1- 4 ft. USB 2.0 Cable
Specifications
| Power Consumption | 5V |
| Video Resolution | Max 1600x1200 |
| Ports | 1 Female DVI / 1 USB 2.0 Type mini-B |
| Operating Temperature | 68 ~ 122 F ( 20 ~ 50 C) |
| Storage Temperature | 32 ~ 158 F ( 0 ~ 70 C) |
| Operating System Support | Windows 2000, XP, Vista |
| USB Specification | 2.0 compliant |
| Humidity | 20-80% RH, (Non Condensing) |
| Power Switch | Bus Powered |
| Video connections | |
| Input | USB |
| Output | DVI |
| Connectors | |
| USB | 1 |
| Video Output | 1 |
| Power Mode | USB |
| Unit Dimensions | |
| Width | 2.25 in |
| Height | 0.8 in |
| Length | 3.5 in |
| Unit Package Dimensions | |
| Width | 7.9 in (20 cm) |
| Height | 7.9 in (20 cm) |
| Depth | 2 in. (5.1 cm) |
| Inner Pack | |
| Width | 16.5 in. (42 cm) |
| Height | 17 in. (43 cm) |
| Depth | 7 in. (17.8 cm) |
| Inner Pack Qty. | 12 |
| Master Carton | |
| Width | 17.13 in (43.5 cm) |
| Height | 17.72 in (45 cm) |
| Depth | 15.16 in (38.5 cm) |
| Master Carton Qty. | 24 |
| Weight | |
| Master Carton Wt. | 19 lbs. |
| Inner Pack Wt. | 9.4 lb |
| Unit Pack Wt. | .8 lbs |
| Unit Wt. w/accessories | 0.35 lb |
| Unit Wt. | 0.25 lb |
